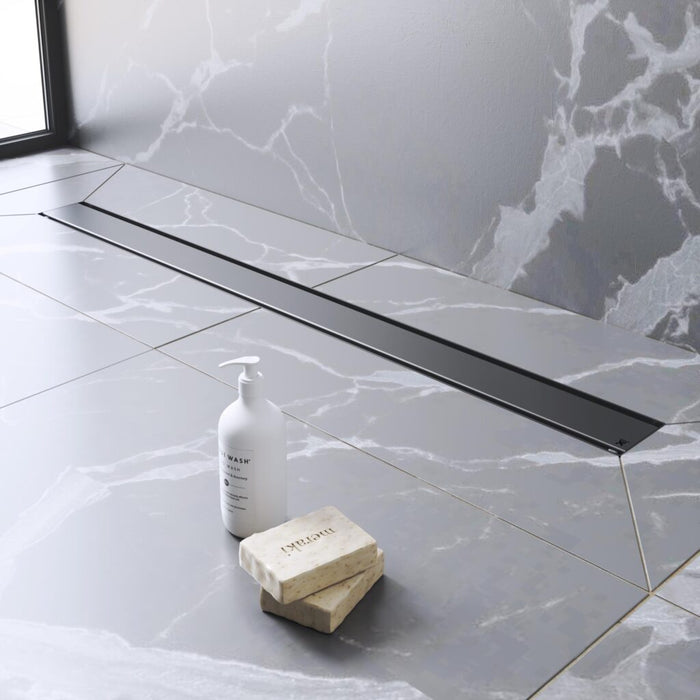

ESTIL GURU EVOLUX LISA DARK Integrated Shower Outlet Black

Brand: ESTIL GURU
Ref: IE51000
Translation missing: en.product_price.item.price.range_html
Original price
249,00€
from 249,00€
Actual Price 249,00€
VAT included

Shipping cost calculated at checkout

Any question with this product? Contact us via WhatsApp and our team will help you.

Key Details

Brand: ESTIL GURU

Outlet system for shower tray EVOLUX LINEAL DARK color dark. Ideal solution to create Outletage with waterproof protection for construction shower trays. It provides security, ease of installation and takes care of every last detail. Manufactured with the best materials and finishes, it contributes to the design and quality of the built-in shower tray.

  • Linear systems with gutters offer us the possibility of creating walk-in showers with floor formats different from traditional ones, with hardly any joints and making the most of the space for better evacuation.
  • They can be placed wide or full length with a single drop of water, in the middle of the shower with two drops and in many other positions. They are installed attached to the wall using the SIDE PROFILE accessory.
  • Shower trays with minimum height, even at floor level.
  • Multiple configuration options for the shower area.
  • Gable Outlet completely attached to the wall.
  • Open bathrooms.

Characteristics:

  • Adjustable and adjustable siphon body in specific formats.
  • Manufactured reducing the environmental footprint.
  • Suitable for PMR (People with Reduced Mobility) because it allows the circulation of wheelchairs.
  • Minimum height assured.
  • Durable and easy installation.
  • 100% impermeable.
  • Outletage capacity according to EN 1253 standard.
  • Easy cleaning thanks to the integrated hair catcher.

Technical specifications:

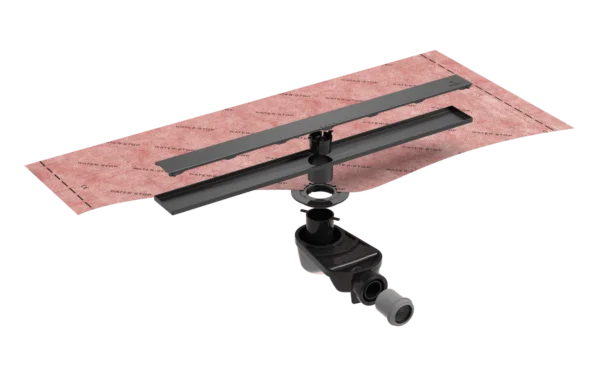

  • Separate installation of the siphon body and the WATER-STOP waterproof sheet is more convenient and simple.
  • The connections are elastic by pressure with decoupling, without gluing.
  • Installation at a minimum height of 90 mm including a 9 mm thick floor with its installation adhesive.
  • Low profile siphon compatible with EN 1253-1 standard with 50 mm bypassable siphon.
  • Evacuation flow based on models up to 0.65 l/s (39 liters/minute).
  • With a 6 mm wide diagonal throat.
  • We incorporate color into the Evolux System.
  • In line with the most current trends, we also highlight the colors on the shower floor.
  • Made with stainless steel and the best coloring/printing treatment, it contributes to the design and quality of the shower tray.
  • The measurements of the gutters are: 60/70/80/90 cm x 65 mm.
  • All of them incorporate a 6 mm perimeter groove on each side.
