ESTIL GURU IB20015R AIKIT EVO Outlet Siphon Reduced Height Shower
Shipping cost calculated at checkout
Key Details
Brand: ESTIL GURU
Introducing the EVO system, a waterproofing Outlet designed to add a touch of color to your showers. This kit is the perfect solution for providing waterproof protection in areas exposed to water, such as changing rooms, showers and laundry rooms.
With the Evo Feels Mint, you can give a special and vibrant touch to your bathroom spaces, while ensuring you have reliable waterproof protection. Enjoy a modern and functional design that enhances the look of your showers, while providing an effective barrier against moisture.
Whether you are renovating your spaces or looking for a solution to protect them, the Evo Feels Mint is a versatile and stylish option that meets all your expectations in terms of design and performance. Add a touch of freshness to your showers and wet areas with this waterproofing Outlet kit.
- Adjustable and adjustable siphon body in specific formats.
- Manufactured reducing the environmental footprint.
- Suitable for wheelchairs.
- Minimum height assured.
- Durable and easy installation.
- 100% impermeable.
- Outletage capacity according to standard 1253.
- Easy cleaning thanks to the integrated hair catcher.
Technical specifications:
- Separate installation of the siphon body and the WATER-STOP waterproof sheet is more convenient and simple.
- The connections are elastic by pressure with decoupling, without gluing.
- Installation at a minimum height of 90 mm including a 9 mm thick floor with its installation adhesive.
- Low profile siphon compatible with EN 1253-1 standard with 50 mm bypassable siphon.
- Evacuation flow based on models up to 0.65 l/s (39 liters/minute).
- Square grate for punctual Outletage with 4 waters.
- Bowl with external dimensions 11.6 x 11.6 cm with internal slopes and 10 x 10 cm grid.
- Bowl with external dimensions 15 x 30 cm with internal slopes and grate measuring 13.4 x 28.4 cm.
- With a 6 mm wide diagonal throat.
- With 6 mm wide perimeter Outletage hole.
- Made of AISI 304 stainless steel and with a wide range of grate designs.

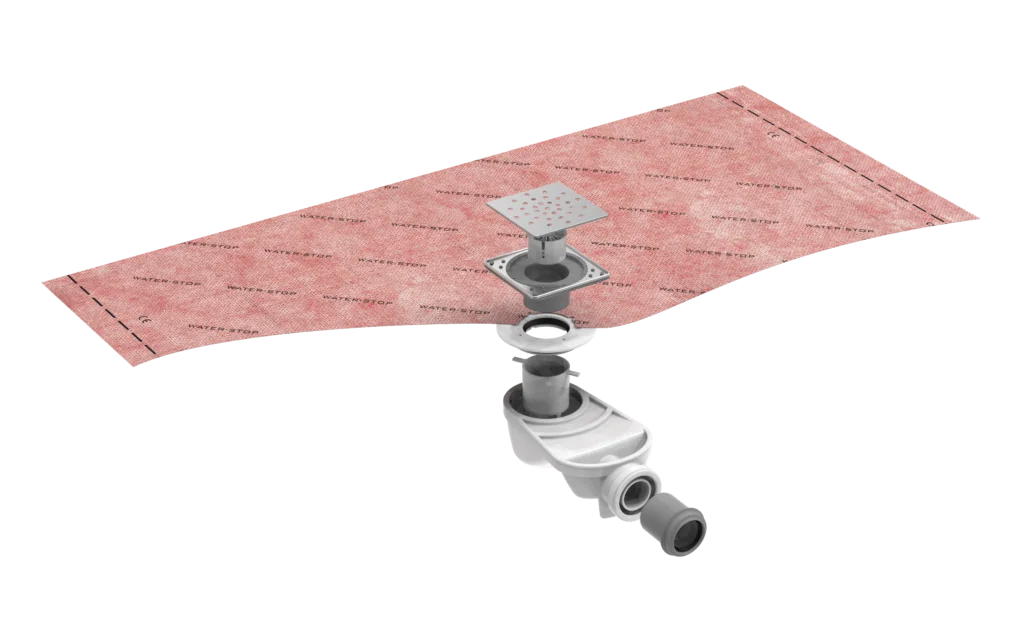

Kit Content:
- EVO grille
- hair pick
- WATER-STOP sheet
- cazoleta
- Adapter
- Red Crown
- Ruber siphon
- Reductor 40/50 mm
Accessories included in the kit:
- 2 W-S DEX for greater safety in waterproofing joints.
- 2 W-S TUB for total waterproofing when installing the Outlet pipe.
- 1 Installation cover to prevent leaks in the RUBER siphon.
- Datasheet.
- Installation Manual.
