ESTIL GURU IB20018 EVO COLORS AIKIT POLISHED Shower Drain
Want it by calculating…? This date is an estimate and may be affected by factors beyond Bañoidea's control. We'll keep you updated on your order's progress at all times.
Order within …
Key Details
Brand: ESTIL GURU
We present the EVO system, a drain with waterproofing designed to add a touch of color to your showers. This kit is the perfect solution to provide waterproof protection in water-exposed areas such as locker rooms, showers, and laundry rooms.
With Evo Feels Mint, you can give a special and vibrant touch to your bathroom spaces while ensuring reliable waterproof protection. Enjoy a modern and functional design that enhances the look of your showers while providing an effective barrier against moisture.
Whether you are renovating your spaces or looking for a solution to protect them, the Evo Feels Mint is a versatile and stylish option that meets all your expectations in design and performance. Add a touch of freshness to your showers and wet areas with this drain kit with waterproofing.
- Adjustable and rotatable siphon body in point formats.
- Manufactured reducing the environmental footprint.
- Suitable for wheelchairs.
- Minimum height ensured.
- Durable and easy installation.
- 100% waterproof.
- Drainage capacity according to standard 1253.
- Easy cleaning thanks to the integrated hair catcher.
Technical specifications:
- Separate installation of the siphon body and the WATER-STOP waterproof membrane is more comfortable and simple.
- Connections are elastic by pressure with decoupling, without gluing.
- Installation at a minimum height of 90 mm including a 9 mm thick floor with its adhesive.
- Low-profile siphon compatible with EN 1253-1 standard with a 50 mm removable siphon.
- Evacuation flow based on models up to 0.65 l/s (39 liters/minute).

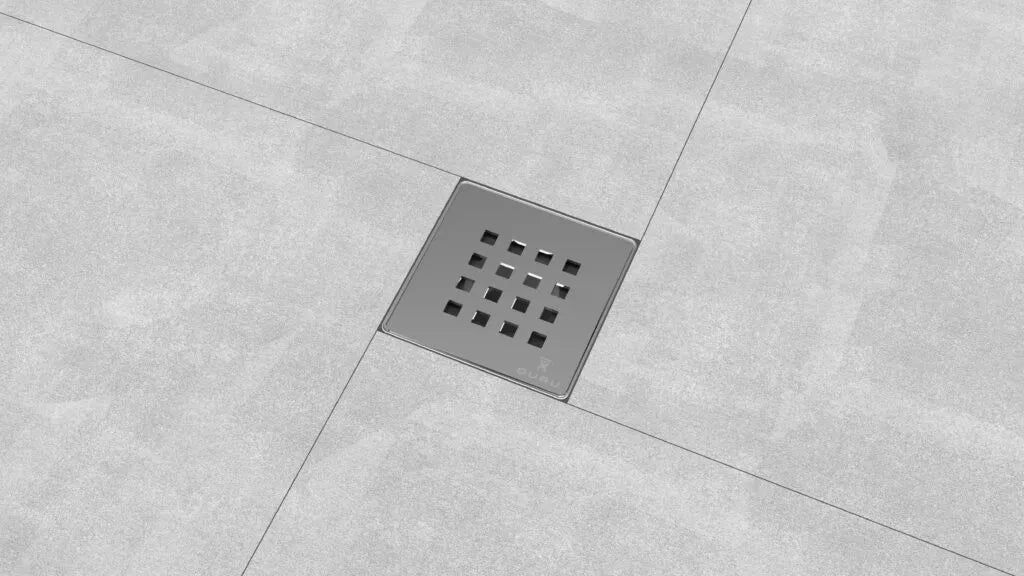

- Square grid for point drainage with 4 slopes.
- Basin with external dimensions 11.6 x 11.6 cm with internal slopes and a 10 x 10 cm grid.
- Basin with external dimensions 15 x 30 cm with internal slopes and a 13.4 x 28.4 cm grid.
- With a 6 mm wide diagonal throat.
- With a 6 mm wide perimeter drainage groove.
- Made of AISI 304 stainless steel with a wide range of grid designs.

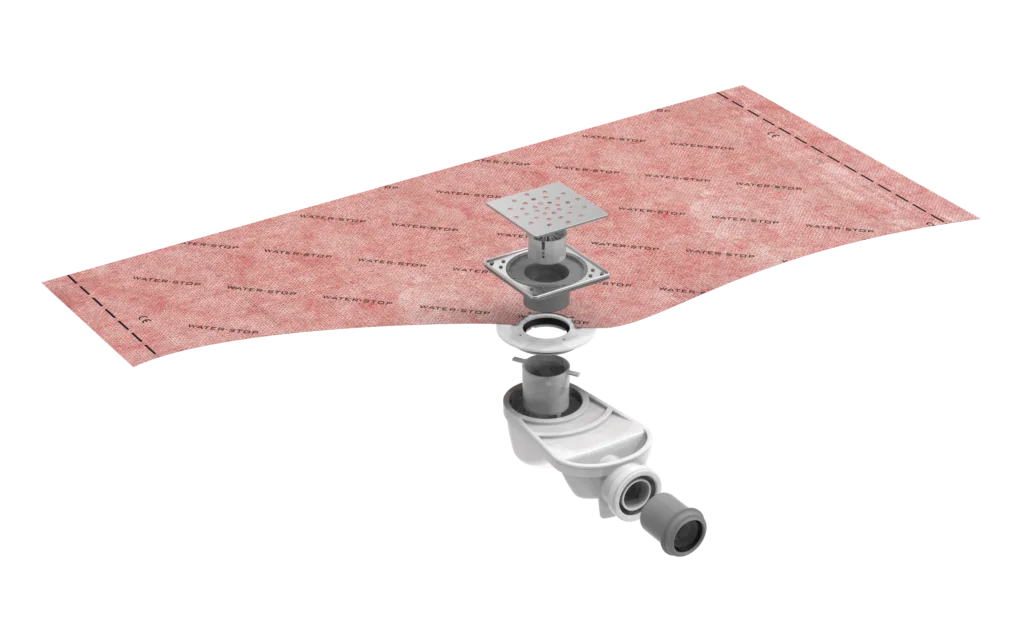

Kit Contents:
- EVO grid
- Hair catcher
- WATER-STOP sheet
- Basin
- Adapter
- Ruber Crown
- Ruber Siphon
- Reducer 40/50 mm
Accessories included in the kit:
- 2 W-S DEX for greater joint waterproofing security.
- 2 W-S TUB for total waterproofing when installing the drain pipe.
- 1 Installation cover to prevent leaks in the RUBER siphon.
- Technical sheet.
- Installation Manual.
