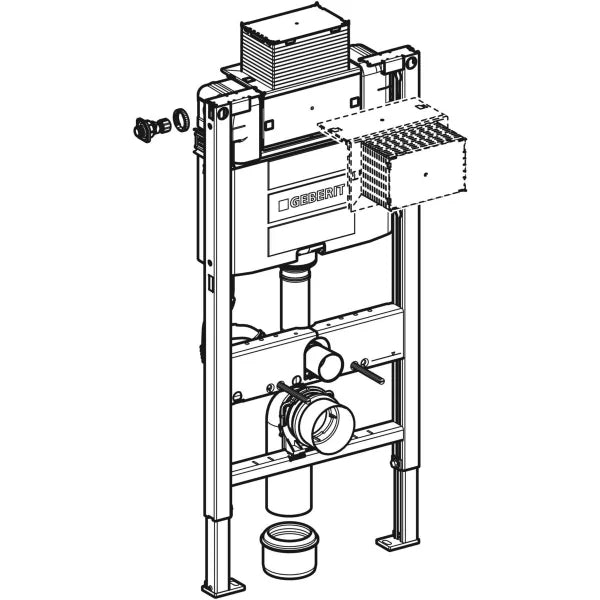

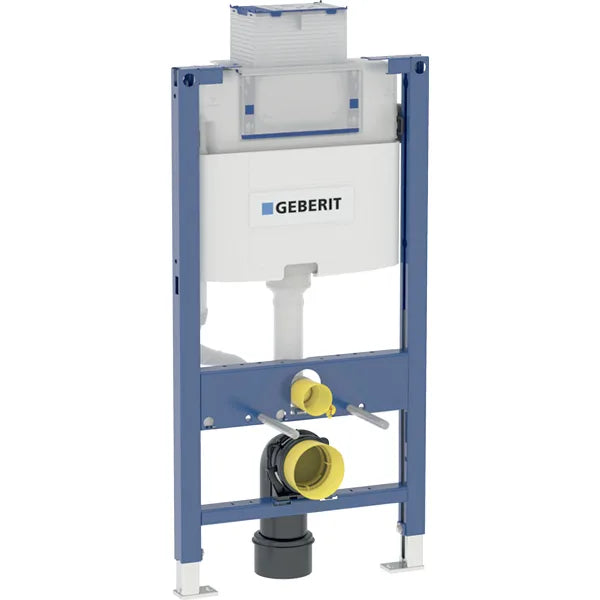

GEBERIT 111.030.00.1 DUOFIX OMEGA 12 cm Concealed Cistern with Frame

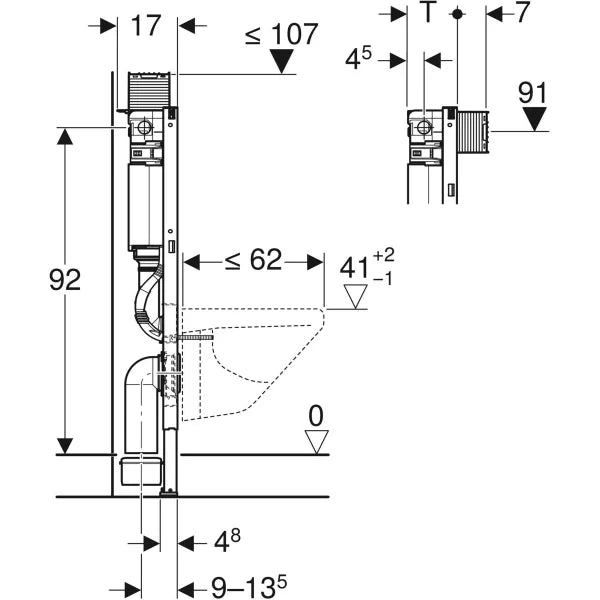

Frame Geberit DUOFIX for Wall Hung Toilet, 98 cm, with Omega 12 cm concealed cistern for lightweight wall mounting, for installation in front of partial height wall, for Wall Hung Toilets with connection dimensions according to EN 33:2011, for Wall Hung Toilets with projection up to 62 cm, for dual flush, for build-up heights of 0-20 cm.

• Dynamic pressure: 0.1–10 bar
• Max. water temperature: 25 °C
• Flush volume, factory setting: 6 / 3 l
• Full flush, adjustment range: 4 / 4.5 / 6 / 7.5 l
• Partial flush, adjustment range: 2–4 l
• Minimum flow pressure for calculated flow: 0.5 bar
• Material: Steel
• Adjustable height: No

Includes:

• Supply connection Rp 1/2", compatible with MasterFix and MeplaFix, with integrated angle valve and thread
• Pre-assembly box for inspection
• Set of sleeves for Wall Hung Toilet, ø 90 mm
• PE-HD drain elbow, ø 90 mm
• PE-HD adapter sleeve, ø 90/110 mm
• 2 protective caps
• 2 M12 threaded rods
• Fixing material
