ROCA A890073020 DUPLO ONE Frame With Compact Recessed Cistern
Shipping cost calculated at checkout
Key Details
Brand: ROCA
Collection: Duplo One
DUPLO WC COMPACT ONE of Roca Sanitary.
Frame with compact built-in dual flush cistern for suspended toilet.
- Axial distance of 180mm.
- 90 ø / 110 ø elbow. Metal profile with resistance capacity of 400 kg.
- Adjustable legs from 0-200 mm.
- Upper hydraulic connections.
- Only compatible for ONE series recessed cistern pushbuttons of Rock.

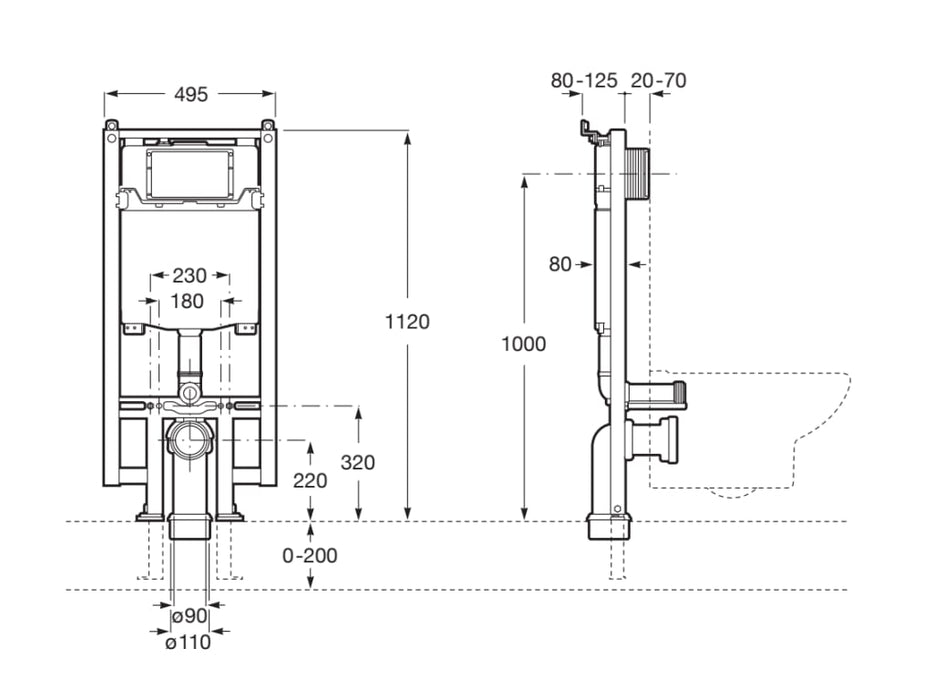

- Dimensions: 580 x 90 x 1140 mm (length x thickness x height).
- Recommended for small spaces.
- Double discharge 3/6 Liters.
- Recommended for public spaces.
- Tank depth (mm): 80.
- Drive plate position: Front.
- Minimum fixing depth (mm): 90.
- Water intake position: Upper.
- Dynamic pressure range: 0.1 - 10 Bar.
